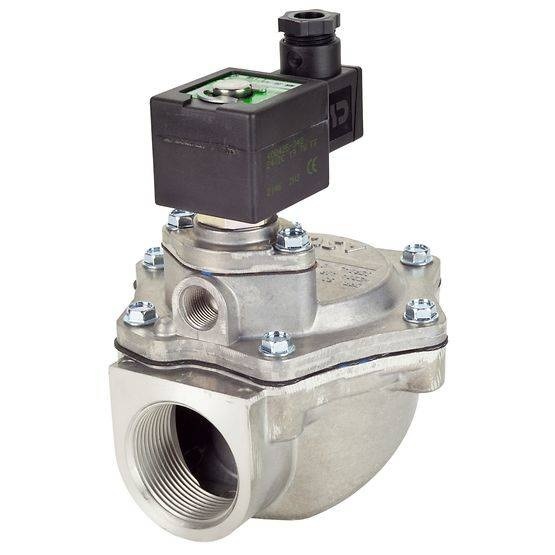

- article code = ASCO-G-353-K-2-1-1-S1-A00-F1
- code ASCO = Manufacturer
- code G = Connection Type ISO 228/1 "G" body connections
- code 353 = Product Series Pulse Valves
- code K = Revision - Initial Release
- code 2 = Pipe Size - G1 inch
- code 1 = Body Material - Aluminum
- code 1 = Temperature / Sealing TPE - Standard, Temperature range *
* Ambient -20°C to +85°C (-4°F to 185°F)
* Cleaning Fluid -15°C to +85°C (5°F to 185°F)
* Dusty Gas -20°C to +140°C (-4°F to 284°F)
- code S1 = Electrical interface - Spade plug, 3x DIN 46244, IP65 (equivalent to SC prefix)
- code A00 = Options - without option
- code F1 = Voltage - 24/DC Class F
* note, replacement for ASCO-SC.G.353A044.24VDC
